Industrial and Commercial Energy Storage System
30KW/50KWH,50KW/100KWH,100KW/215KWHIndustrial and Commercial Energy Storage System
Industrial and Commercial Energy Storage System
Product Highlights
Model Specifications
| Model | ESS030-050 | ESS050-050 | ESS050-100 | ESS100-215 |
| AC data | ||||
| Rated power (kW) | 30 | 50 | 50 | 100 |
| Rated voltage (V) | 400 | |||
| Rated current (A) | 43 | 72 | 72 | 144 |
| Voltage range (V) | 320V-460V | |||
| Rated frequency (Hz) | 50/60 | |||
| Frequency Range (Hz) | 45-55 / 55-65 | |||
| THDi (on-grid) | <3% | |||
| THDu (off-grid) | ≤ 1% linear; ≤ 5% non-linear | |||
| Power factor | 1leading~1lagging(settable) | |||
| Overload capacity | 110% long-term | |||
| Grid type | 3W+N+PE | |||
| Isolation transformer | 100/400 | 200/400 | 200/400 | 270/400 |
| On / off-grid switching | Support | |||
| PV data | ||||
| Max. PV input voltage (V) | 1,000 | |||
| Max. PV power (kW) | 36/72 | 60/120 | 60/120 | 120/180/240 |
| MPPT operating voltage range (V) | 250~850 | |||
| Buck-boost mode | Support | |||
| Battery data | ||||
| Cell type | 3.2V/100Ah/LFP | 3.2V/105Ah/LFP | 3.2V/280Ah/LFP | 3.2V/280Ah/LFP |
| Rated voltage (V) | 460.8V，1P144S | 460.8V，1P144S | 358.4V，1P112S | 768V，1P240S |
| Rated energy (kWh) | 55.296 | 55.296 | 100.352 | 215.04 |
| Operating voltage range (V) | 403.2~511.2 | 403.2~511.2 | 319.2~397.6 | 672~850 |
| Max. charge and discharge rate | 1C@25℃ | 1C@25℃ | 0.5C@25℃ | 0.5C@25℃ |
| Number of battery cycles | ≥3,800 | ≥3,800 | ≥6,000 | ≥6,000 |
| General data | ||||
| Dimensions W *D *H (mm) | 1,780×1,520×2,290 | 1,780×1,520×2,290 | 1,780×1,585×2,290 | 2,460×1,560×2,425 |
| Weight (kg) | 2,000 | 2,200 | 2,400 | 3,900 |
| Operating temperature (℃) | 0～+45 | |||
| Relative humidity | 0 ~95%（non-condensing） | |||
| Ingress protection | IP54 | |||
| Noise emission (dB) | <75 | |||
| Max. operating altitude (m) | 5,000(>3,000 derating) | |||
| Cooling | Intelligent air cooling | |||
| Fire extinguishing system | Aerosols/NOVEC1230(optional) | |||
| Display | Touch LCD display+cloud platform | |||
| EMS communication | RS485，TCP/IP | |||

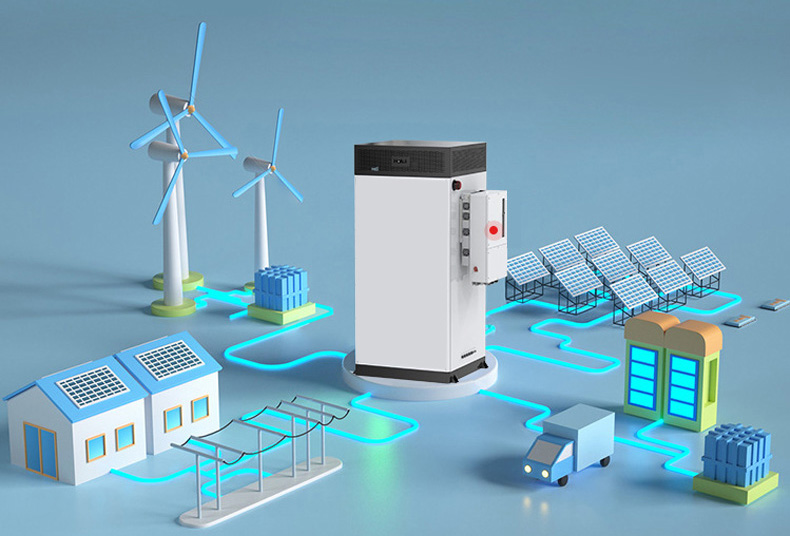

Off-grid ESS Diagram

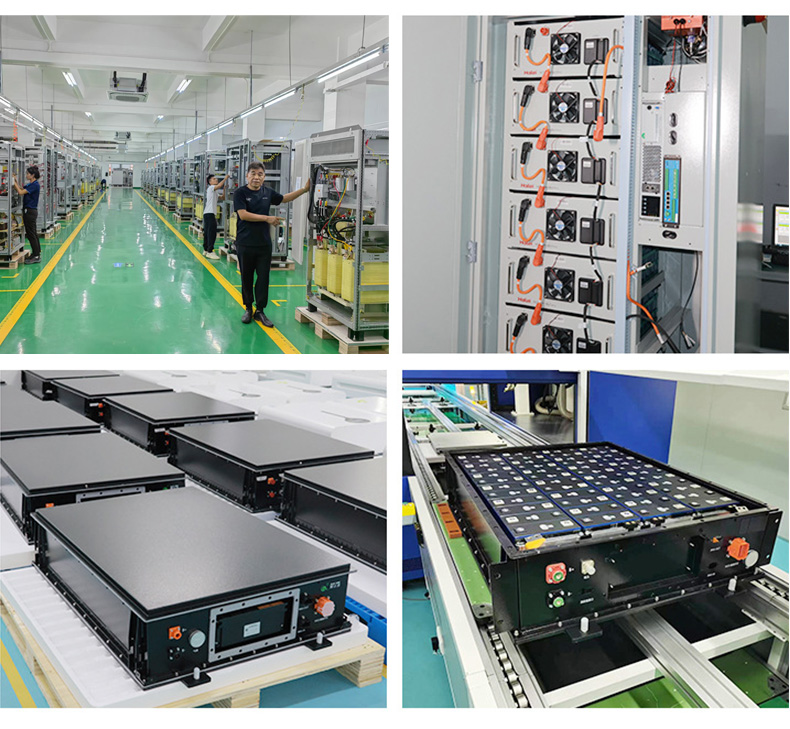

Production Workshop
