Model Number ：HSG-48105
Nominal Voltage: 48V (51.2V)
Nominal Capacity: 105 Ah
Stored Energy:5.37 kWh
Weight lbs. (kg) No Counterweight: 95 lbs. (43.2 kg)
Typical Mileage Per Full charge: 64-81 km (40-50 miles)
IP Rating: IP67
HSG-48105 is is specially designed for your golf cart to replace the lead-acid batteries.

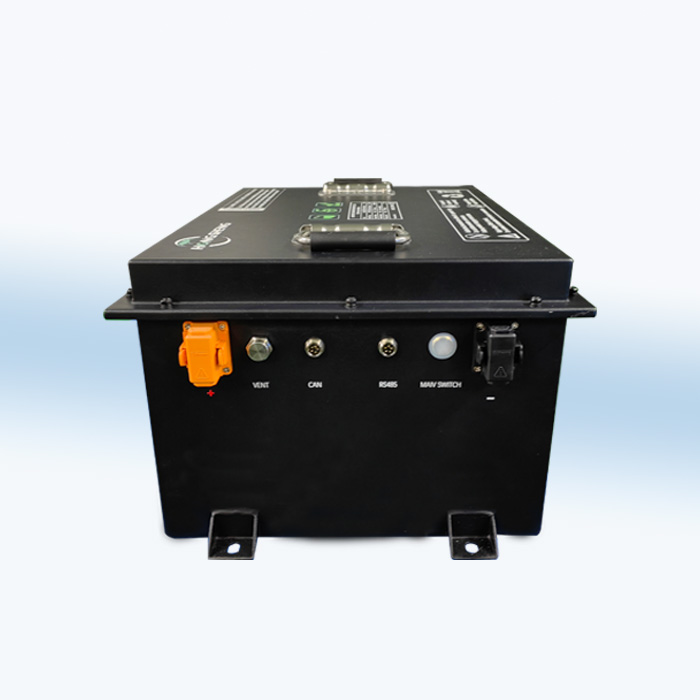

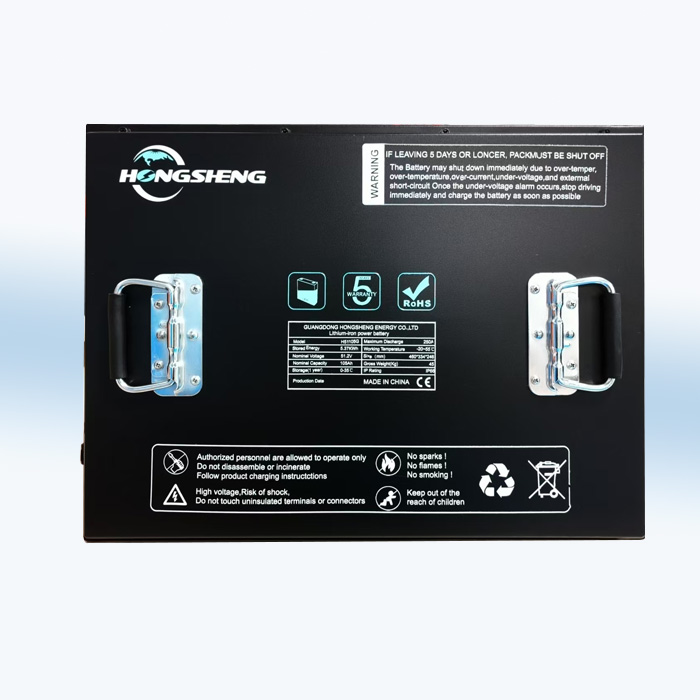

48V 105Ah LiFePO4 Golf Cart Battery
Benefits
Smart batteries
We design and manufacture integrated smart battery solutions. Our smart batteries optimize the cell-balancing, fast charge efficiency, the alarm functions and so on, maximizing stable performance.
TECH & SPECS
|
Nominal Voltage / Discharge Voltage Range |
48（51.2V） |
Nominal Capacity |
105 Ah
|
|
Stored Energy |
5.37KWH |
Dimension(L×W×H) For Reference |
18.1 x 13.2 x 9.8inch (460 x 334x 249.5 mm) |
|
Weight lbs.(kg) No Counterweigh |
95lbs(43.2KG) |
Typical Mileage Per Full charge |
64-81 km (40-50 miles)
|
|
Continuous Charge / Discharge Current |
100A |
Maximum Charge / Discharge Current |
250 A (10 s) |
|
Charge |
32°F~131°F ( 0°C ~ 55°C) |
Discharge |
-4°F~131°F ( -20°C ~ 55°C) |
|
Storage (1 month) |
-4°F~113°F ( -20°C~45°C) |
Storage (1 year) |
32°F~95°F ( 0°C~35°C) |
|
Casing Material |
Steel |
IP Rating |
IP67 |
